Bucket Elevator
The bucket elevators are used very wide, especially in the construction industry. The industrial bucket elevators can be used to transport a variety of powder, granular, or small size block materials, such as dry mortar, thermal insulation mortar, putty powder, grain, coal, cement, stone, etc.
Belt type bucket elevator and chain type bucket elevator commonly used transportation materials include coal, cement, gravel, sand, grain, etc. This vertical bucket elevator mainly transports powdered materials, or granular, small-sized materials.
Universal bucket elevator generally has two kinds of hoppers, one is suitable for conveying wet and easily agglomerated materials, such as wet sand, fertilizer, etc.; the other is suitable for conveying dry and loose materials, such as cement, mortar, gravel, etc.Classification of Bucket Elevator
Bucket elevators are generally classified according to their structure, including belt type bucket elevators (TD series), chain type bucket elevators (TH series & NE series).
As a professional bucket elevators manufacturer, we will customize the best bucket elevators for you according to the characteristics of your materials, output, lifting height, use occasions, etc.
In addition, the universal bucket elevator for sale from our factory provides installation and commissioning and employee technical training services.

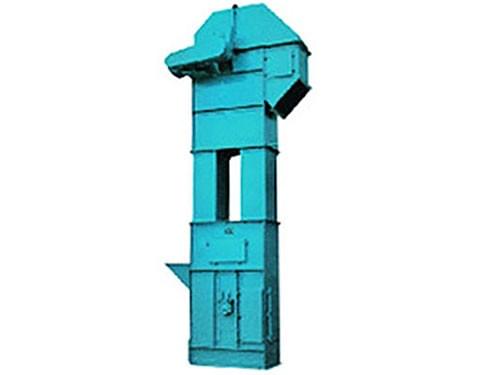

TD Belt Elevator Conveyors
NE Chain Bucket Elevator
TH Chain Bucket Elevator
Steel Bucket Elevator
1. The belt bucket elevator has low noise and low cost. It adopts a centrifugal unloading method. The advanced design principle ensures the stability of operation and long service life.
2. The chain bucket elevator adopts forged chain as the transmission part. All chains are made of high-quality alloy steel, which has high strength, wear-resistance and long service life.

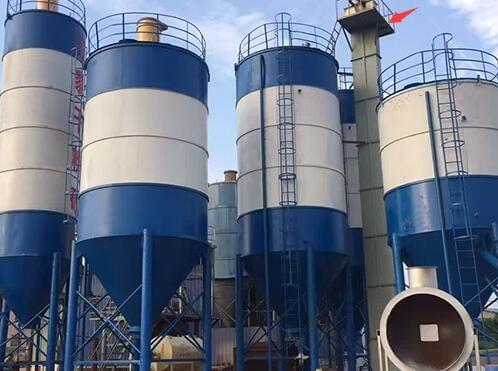

3. The plate chain bucket elevator is easy to operate and has few vulnerable parts. Inductive gravity unloading is used for the vertical lifting of various powders and lumps.Working Site of Bucket Elevator
The application field of the bucket elevator is very wide. You can often see it in dry mortar production lines, concrete batching plants, stone crushing plants, grinding mills, cement silo plants. The application of bucket elevators is almost everywhere.
What Are the Components of the Bucket Elevator?
The bucket elevator is generally composed of the top section, middle section, bottom section, and also includes bucket elevator parts: motor, reducer, transmission belt or chain, guardrail, platform, counterweight box, etc.
1. Top device: Installed with the track (double row) to prevent the chain or belt from swinging during operation, a backstop to prevent the hopper from rotating, and the discharge port is equipped with a rubber plate to prevent material return.
2. Middle section: Some parts are equipped with tracks to prevent the chain or belt from swinging during work, and are equipped with inspection doors for maintenance.
3. Lower device: installed with the tensioning device
Bucket Elevator Diagram & Working Principle
After the material enters the bucket elevator, it enters the hopper and is conveyed to the top of the bucket elevator by a belt or chain. After reaching the top, and the material automatically falls into the box by gravity and reaches the designated position.
Bucket Elevator Working Principle
Bucket Elevator Diagram
