Tile Adhesive Manufacturing Plant China
Di Hai Machinery is a professional manufacturer of tile adhesive manufacturing plant with more than 20 years of experience. Our tile adhesive making machine is exported to almost the world, to Australia, Philippines, Zimbabwe, Sri Lanka, Kosovo, Oman, Bahrain, Saudi Arabia, Zambia, Guyana, Chile, Malawi, Honduras, Thailand, Portugal, kneel, Cambodia, Macedonia, Nigeria, India, Vietnam, Russia, Malaysia, Czechoslovakia, Ghana, Kenya, Lebanon, Paraguay, Tunisia, Mexico, Yemen, Pakistan, Central Asia, Iraq, Kazakhstan, etc., Every country of the world almost have our important customers and tile adhesive manufacturing plant work site.
1-8 T/H Simple Tile Adhesive Manufacturing Plant China
The height of the simple tile adhesive manufacturing plant does not exceed 3m, ordinary houses can be installed and produced, and it can realize automatic weighing and automatic filling, saving you time, realizing automatic feeding and automatic discharging, this is a simple and practical tile adhesive making machine with a small investment.

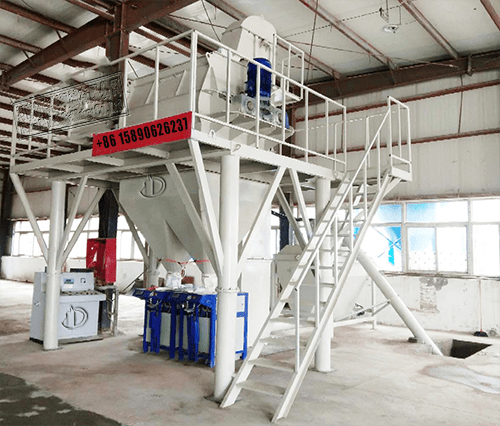

10-20 T/H Semi Automatic Tile Adhesive Manufacturing Plant
Semi-automatic ceramic tile adhesive manufacturing plant consists of bucket elevator, twin shaft mixer, holding tank, packing machine, control cabinet, air compressor
Occupied area:50-60m²
Mixer volume: 2m³
Equipment height:6-8m
Manpower:2-3person
Packaging: Automatic valve bagging pack machine
20-40T/h Automatic Tile Adhesive Manufacturing Plant
Computerized metering is used for automatic batching, no need to feed manual, and problems such as unstable product quality due to manual batching are avoided. Since the raw materials are transported in a closed environment, the phenomenon of large dust will not occur, and the production environment is greatly improved.
More than 40T/H Automatic Tile Adhesive Manufacturing Plant
The whole tile adhesive manufacturing plant has stable performance, The mortar mixing degree is as high as 99.9%, low energy consumption, low investment, fast effect, It can be operated by 3-5 people. It can mix 3 tons of mortar each batch. The entire production line is controlled by an electronic control cabinet.

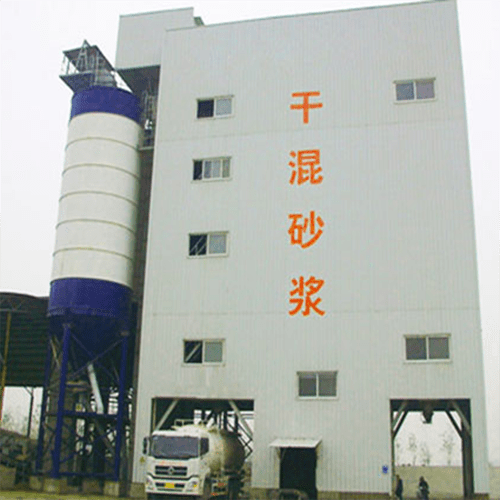

Large Tower Tile Adhesive Manufacturing Plant
- The raw material storage bin of the tower tile adhesive manufacturing plant is at the top of the production line. This tile adhesive making machine occupies a small area, has a compact structure, and has high production efficiency. At the same time, the cost of tile adhesive making machine is relatively high.
- On top of the double-shaft mixer, a pre-mixing hopper can be added to improve production efficiency. Adopted closed production environment, basically no pollution.
20 TPH Auto Tile Adheive Manufacturing Plant In Kosovo
All motors use Siemens brand motors
- Below are the pictures of the Kosovo customer production line
- Since the customer has their own team of engineers, they are also very professional.
- During the entire dry mortar plant installation process, we did not send engineers to their country.
- All communication is online, and some special details are communicated face-to-face through video.
- In short, the entire tile adhesive making machine installation process went smoothly.
- Below is the photo sent by the customer after the installation is complete.
To briefly talk about this production line ordered by the Kosove customer, as tile adhesive raw material, the customer ordered 2*20 tph full automatic tile adhesive manufacturing plant with 4 cubic twin shaft paddle mixer. At the same time, this production line contains 3 bolted cement silo.
Below are the photos were taken when our Kosovo customer came to inspect the machine.
- If you want the same configuration list or solution, please feel free to contact us.
- If you want to know the tile adhesive manufacturing process pdf, please feel free to contact us.
- If you want tile grout formulation as a reference, please feel free to contact us.
Sand Dryer Machine
The sand dryer machine can dry a variety of materials, such as sand, clay, fly ash, limestone, etc.
In the entire tile adhesive manufacturing production line, if the humidity of your raw materials is greater than 5% then you may need it, the sand dryer machine.
- Three-layer inner cylinder design, with more than 20 drying chambers, good heat insulation, small footprint, and can dry sand in the shortest time.
- At the same time, it consumes less heat energy and is an economical dryer.
- The internal drying room is made of alloy steel with wear-resistant
What's Tile Adhesive Mortar?
- The effect of ceramic tile adhesive is n + 1 times that of cement, and spraying only a thin layer is needed.
- Compared with cement, the construction is very simple, just add water to use. Less affected by the environment.
- Tile adhesive mortar is mainly used to paste ceramic tiles, facing tiles, floor tiles and other decorative materials. It is suitable for interior decoration places such as interior walls, exterior walls, floors, bathrooms, kitchens, etc.
- Tile adhesive mortar main feature is connection high strength, water resistance, freeze resistance, aging resistance, good performance and convenient construction, it is a very ideal bond material.
Main parts of tile adhesive manufacturing plant
- The main components of tile adhesive making machine are consistent with the dry mortar plant, only the raw materials and finished products are different.
- This tile adhesive manufacturing plant consist of mixing system, batching / weighing system, dust collector system, conveying system, raw material storing system, control system, and packing system etc.
- The cement bin is detachable, saving your transportation space
- The elevator can choose an indoor bucket elevator and outdoor bucket elevator, as well as a belt elevator and chain bucket elevator.
- The control system has an ordinary LED display screen and a fully automatic PLC control program.
- Gravity-free mixer, fast mixing speed, uniform material.
- Automatic weighing and loading.
- Automatic valve port packing machine, packing speed 3-5s.
- Powerful dust removal system keeps your space clean.
This is a standard for automatic tile adhesive manufacturing plant configuration. Di Hai engineers will design the most reasonable tile adhesive mortar mixing production line according to your site size, raw materials, preferences and output requirements.
How much tile adhesive making machine?
- When you are purchasing tile adhesive making machine, do you think that the most expensive is the best?
- In 2012, my Australian friend. He uses almost all the famous brands of components (mixers, packaging system, control systems), he only recognizes these brands. As a result, his output is less than 100 tons per day. He found us helplessly, Di Hai engineers helped to re-improve this tile adhesive manufacturing plant, and increase the output to 20ton / h.
- From Di Hai nearly 15 years of experience in tile adhesive manufacturing, it is most important that the machine is suitable for you. Not all good things are suitable for you. It is important to design the most reasonable tile adhesive making machine according to your finished product requirements and output.
- In general, when considering building a factory or replacing tile adhesive mixing machine, the first thing to determine is your own site and capacity, then find a professional manufacturer to design solution, put forward your own requirements, and let the engineer design the most reasonable solution for you.
- Negotiate according to the quotation and configuration table of the other party (strongly recommend not to choose many tile adhesive making machine manufacturers for a complete set of equipment, many problems will occur during installation.)
Small Tile Adhesive Manufacturing Making Machine In Malaysia
This is a tile adhesive making machine with sand drying machine and capacity at 12 t/h in Malaysia.
The workshop occupies 20 m2, the height of the equipment is 4.2m, it needs 2-3 people to operate this line.
- This is an improved tile adhesive making machine that looks simple, but in fact, it uses a double shaft 2 cubic meter mixer.
- Efficient mixing system greatly improves production efficiency.
- It is a really small machine large-volume production line.
- If the output you need matches this production line, I suggest you buy it.
- This is an improved tile adhesive making machine that looks simple, but in fact, it uses a double shaft 2 cubic meter mixer.
- Efficient mixing system greatly improves production efficiency.
- It is a really small machine large-volume production line.
- If the output you need matches this production line, I suggest you buy it.
Tile Adhesive Manufacturing Making Machine Working Site
- The 4 pictures on the right are all tile adhesive manufacturing plants with more than an output of 20 tons per hour.
- NO.1 dry mortar production line with mine crushing, grinding machine, sand dryer machine. This site is in Russia and the customer owns a mine.
- NO.2 A tile adhesive manufacturing plant built by the sea, it also has a sand drying plant, which is not shown in the picture.
- If you want to see the picture or video of the whole dry mix mortar production line, please contact us.
- NO.3 Due to the strong local environmental protection awareness, the dust removal system of this tile adhesive making machine is an efficient automatic pulse dust collector.
- NO.4 is our domestic dry mortar production line, if you come to China, we can take you to visit.
