Here 6 Type Ready Mix Plaster Plants With Different Solution
We are professional in the production of ready plaster plant, we have a professional designer team, engineer team, sales and service team, and promise one-to-one service.
6-8 ton per hour
Small Dry Mix Plaster Production Line
8-15 ton per hour
Improved Dry Mix Mortar Plant
15-20 ton per hour
Ready Mix Plaster Plant With Sand Dryer
20-30 ton per hour
Automatic Ready Mix Plaster Plant
More than 30 ton per hour
Full Automatic Ready Mix Plaster Plant With Grinding Mill
More than 30 ton per hour
Dry Mix Mortar Plant
Ready Mix Plaster Plant Features & Parameters
Di Hai engineers can customize the ready mix plaster machine according to your needs, Free Design.
Simple Dry Mortar Production Line
1-8 ton per hour
- LD1000, LD2000, LD3000 ribbon mixer
- Need 2-3 workers
- Easy install, small cost with big back.
Semi Ready Mix Plaste Plant
20-30 ton per hour
- Twin shaft paddle mixer DWZ2000, DWZ4000
- 2-3 workers
- Auto feeding and packing.
Double Dry Mortar Mixer Plant
30-40 ton per hour
- Double DWZ2000 mixer
- 3-4 workers
- Packing fast, closed space operation, no pollution, automatic feeding
Automatic Ready Mix Plaster Plant
40-50 ton per hour
- PLC control system
- Automatic feeding & discharging
- Automatic batching & packing
Ready Mix Plaster Plant
Di Hai Machinery is a manufacturer of multifunctional ready mix plaster plant. The annual output of a small ready mix plaster plant is 20,000-50,000 tons, and the annual output of a large ready mix plaster plant can reach 100,000-300,000 tons.
- After years of accumulated experience, Di Hai company has developed a new generation of special ready mix plaster plant,
- which can automatically measure and mixing a variety of raw materials, including vitrified microbeads, lignin fibers, construction powder, polystyrene particles, expanded perlite, heavy calcium and other raw materials.
- According to different materials and different physical characteristics, different metering and mixing methods are designed to meet customer requirements for mortar quality.
Ready Mix Plaster Plant
- Compact structure, small footprint;
- Less investment and quick return;
- It can produce light gypsum, plaster mortar, putty powder, special mortar and other mortars;
- Simple and flexible, which can be installed in standard industrial plants.
Working Site of Ready Mix Plaster Plant
If you want to know more working site in your country or solutions, feel free to contact us.
Ready Mix Plaster Plant (15-20 t/h)
Small Ready Mix Plaster Plant -Trail Operation
Ready Mix Plaster Plant
Automatic Ready Mix Plaster Plant - Customer Working Site
Ready Mix Plaster Plant ( more thant 30 t/h)
Di Hai Factory Introduction
More Advantages of Ready Mix Plaster Plant
- The automatic ready mix plaster production line has the advantages of compact design, advanced technology, simple operation, convenient maintenance, etc.
- The batching system controlled by the fully automatic intelligent computer system has good measuring system signals, accurate transmission data and reduced errors.
- The main unit of the mixing system adopts a two-shaft paddle gravityless mixer, which has high mixing efficiency, short time, high uniformity, good fiber dispersion, power consumption is 60% lower than ordinary horizontal ribbon mixer, and the pneumatic control the door instantly discharges to save time and increase output.
- The energy-saving ready mix plaster plant is cost-effective and can produce a variety of mortars, which not only has low investment and high efficiency, but also avoids idle equipment and waste of resources caused by excessive investment.
- The small ready mix plaster production line can produce 3-5 tons per hour, and only 3-6 need workers to operate it. This ready mix plaster plant has the advantages of small footprint, low energy consumption, easy operation, and direct installation and uses without foundation.
- Ready mix plaster plant is suitable for the production of ordinary mortar: namely (masonry mortar, plastering mortar); at the same time, it can produce most special mortars such as waterproof mortar, tile adhesive, joint filler, interface agent, wall putty and so on.
- The ready mix plaster plant is designed according to the buyer's factory and investment scale. Low cost and reasonable process.

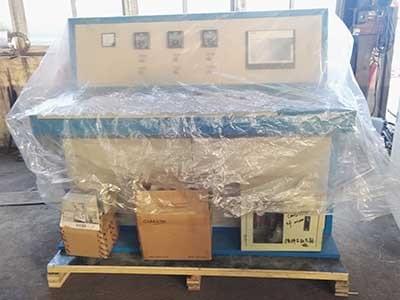

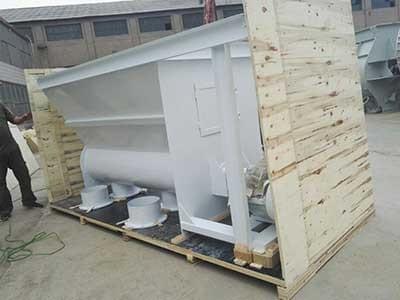

Packing For Dry Mix Plaster Plant
Under normal circumstances, use non-fumigation wooden box packaging machines, except for particularly large ones.
At the same time, the machine is firmly fixed in the container with iron wire.
Main Parts of Ready Mix Plaster Plant
The ready mix plaster plant is mainly composed of the raw material storage system, lifting conveyor system, metering and batching system, mixing system, storage system, packaging system, dust collector system, control system, steel frame platform, etc. Let us continue to look at the details of each system:

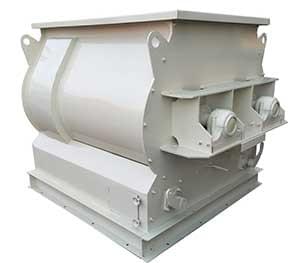

Mixing System
Twin Shaft Paddle Mixer + Pre-Mix Hopper + End Product Hopper
- You can choose 2 cubic, 4 cubic double shaft paddle gravityless mixer, which has the advantages of fast mixing speed and high mixing accuracy.
- The mixer can mix the raw material mixing ratio of 1:1000 or even higher.
- Under the rapid propulsion of the stirring blade, materials with large differences in specific gravity and particle size(such as polystyrene particles, gelling materials and chemical additives)are in a state of instant weightlessness, forming all-round convection, diffusion and mutual shear in the mixing drum.
- Quickly and gently achieve a uniform mixing effect without segregating and destroying the original state of the material.
Raw Material Storage System
Bolted Detachable Silo + Bucket Elevator
The raw material storage system generally uses 3-6 raw material bolted cement silo to store the main raw materials such as sand, cement, gypsum, plaster, and the remaining small silo are used to store small materials such as additives.
Batching System
Batching Hopper + Screw Conveyor + Bucket Elevator
- It mainly adopts microcomputer automatic control and manual feeding. It adopts a microcomputer automatic control batching system in automatic ready mix plaster production lines.
- It adopts cumulative measurement and continuous measurement to complete raw material measurement and batching work. Small additives can be fed manually.
Packing System
Automatic Valve Bag Filling Machine
Valve bag filling machine or open bag packaging machine is generally used, which greatly improves the output efficiency, saves labor, reduces the labor intensity of workers, reduces the production cost, and the packaging accuracy is higher than 0.5%.

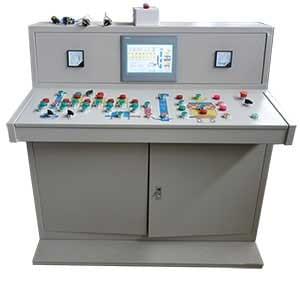

Electric Control System
PLC Control Cabinet
It adopts intelligent automatic control and has functions of over-tolerance processing, automatic correction of fall, fault diagnosis, and alarm. Computer control improves the reliability and safety of the control system, which greatly facilitates users' use.
